ArticleNo/ P/N:
7747002

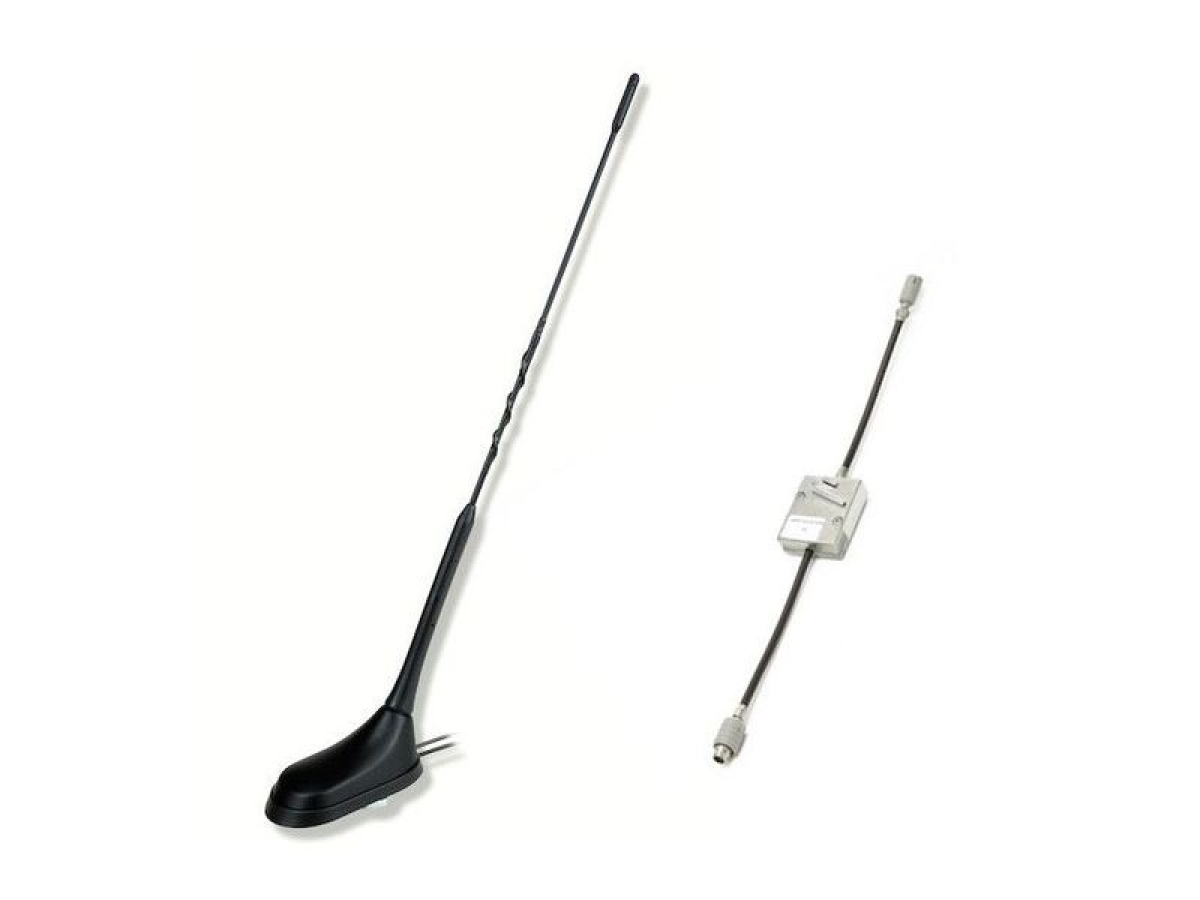

Antenna TV + GPS-GNSS
TRI-TV frequencies:
AM/FM 0.15-1.71 / 87.5-108MHz
GPS=1575.42±1.023MHz
TV=44-68MHz/174-230MHz(III band)/470-790(IV and V band)
Gain : GPS=27 dB TV=12dBi
Power supply : AM/FM 12V GPS=3-5V TV=12V
Current consumption : AM/FM 50mA max GPS=30 mA max TV=38 mA max
Connector : AM/FM=HC97 F GPS=SMB F TV= Mini jack mono 3,5ømm
Antenna cable : GPS(L=5mt Z=75Ω C=100pF/M) TV(L=5mt Z=75Ω)
Fixing hole : coachwork drilling 15x15mm or ø19
